Intelligent manufacturing Intelligent control of the future
2 Years
| Ask Lasest Price | |
| Brand Name : | Mckee Charging Cube |
| Model Number : | FYDC-2 |
| Certification : | CE |
| Price : | Negotiate |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time : | 30 work days |

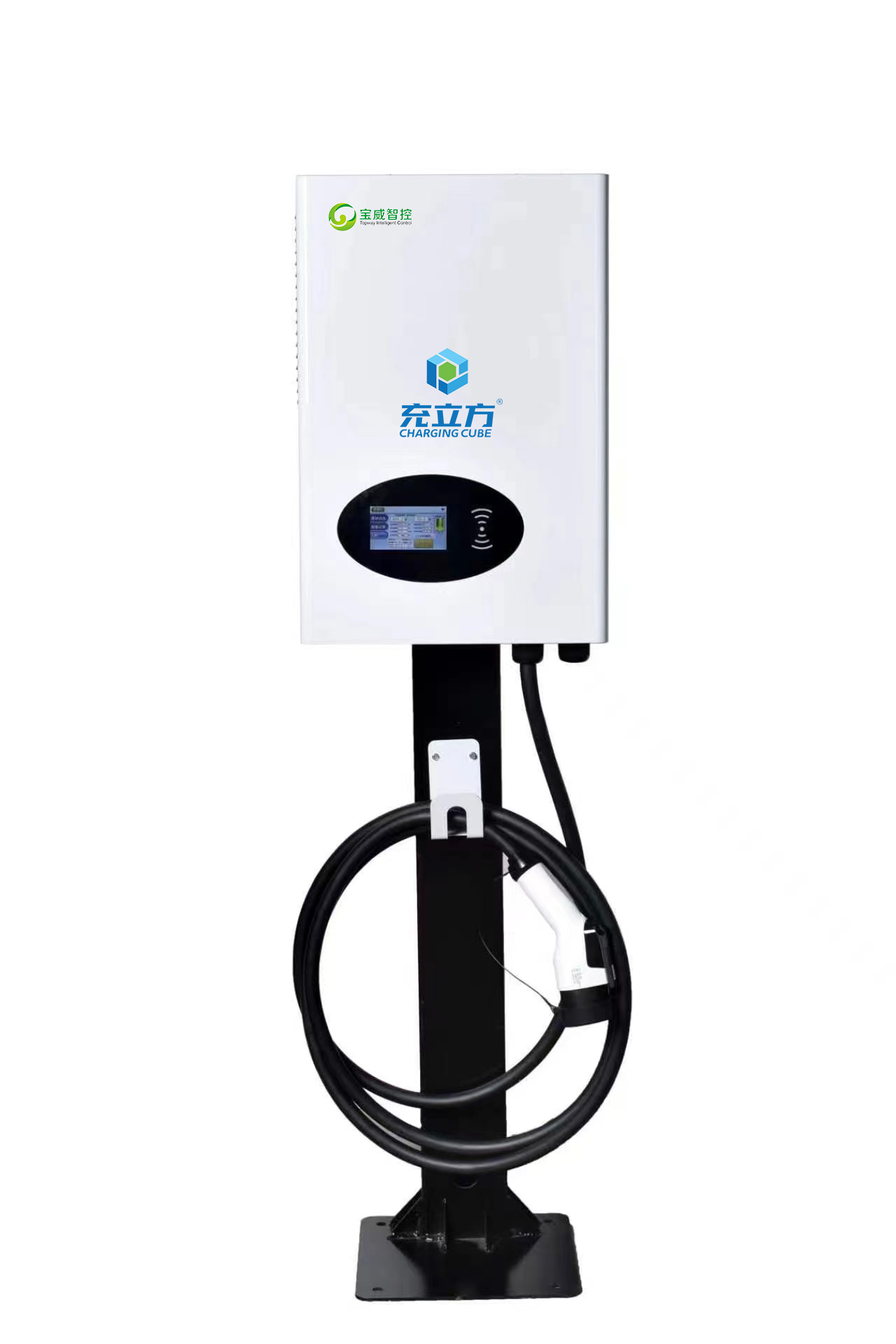

MCKEE 20KW 30KW 40KW Wall-Mounted/Post-Type Electric Vehicle DC AC
Charging Pile
Description
The Mennekes Type 2 plug is installed on almost all European
electric vehicles, as well as on Chinese electric vehicles for
sale. Vehicles with this type of connector can be charged from A
single - and three-phase grid with a maximum voltage of 400 V and a
current of 63 A. The maximum power of such charging stations is 43
kW, but usually fluctuates below 22 kW for three-phase networks and
below 7.4 kW for single-phase networks. Electric cars are charged
in Mode 2 and Mode 3.
Product Feature
Technical Parameters
| Place of Orgin | Luoyang,China |
| Model Number | DC Charger Station |
| Product Name | 20kw 30kw 40kw Movebale DC Charger |
| Output current | 50A~200A |
| Output Power | 20kw 30kw 40kw |
| Input voltage | AC380V±20% |
| Input frequency | 50Hz±10%Hz |
| Output voltage | DC150V-1000V adjustable |
| Input Protection Level | IP54 |
| Voltage stabilization accuracy | ≤±0.5% |
| Power | ≥95% |
| Human-computer interaction | 4.3-inch color touch screen |
| Charging mode | Automatic charging, based on time, battery, and amount |
| Charging method | Swipe card charging, password charging, scheduled charging, screen start and stop charging, plug and charge |
| Protection function | Short circuit, over temperature, over current, leakage, over and under voltage, etc. |
| Working environment | Altitude: ≤2000m |
| Operating temperature | -30℃~+50℃ |
| Cooling method | Air cooling |
| Warranty | 12 Months |
| Installation method | Wall-mounted/column-mounted |
About us
Mckee is a manufacturer focusing on electric car charging stations
and related electric car accessories. Committed to sustainable
development since 2011, we constantly aim to adopt clean and green
technologies,strive to provide safe and green energy services for
human beings through technological innovation.
We provides you with a complete electric vehicle charging solution,
from innovative energy storage technology, to public DC fast
charging stations, to fast charging stations and portable charging
stations for home use. We deploy infrastructure can meet every type
of demand. We want to spread our footprints all over the world,
continuously make new contributions to the new energy sector.
Our Main Products: 360KW Split DC EV Charging Station, 360KW
Integrated DC EV Charging Station, 240/320KW Integrated DC EV
Charging Station ,120/160KW Integrated DC EV Charging Station,
60/80kW DC EV Charging Station, 7KW/11KW/21KW AC EV Charging
Station, 3.5KW/7KW Charging plug with American standard and
European standard, Portable EV Charging and related accessories.
If you have any special needs, please contact our online service.
FAQ
Q: How long is your delivery time?
For charging posts, it is usually 3-10 days. If there is no stock,
the production lead time is determined according to the order
quantity. High-power DC charging posts usually need to be
customized according to the customer's technical parameters.
Q: How long does it take to customize the prototype?
For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need
to be determined before production, and the prototype time is
usually 30 days.
Q: How to guarantee the service?
Our products are divided into two categories: household and
commercial.
For home chargers, we provide standardized service: 1 year warranty
+ remote installation and usage guidance + video installation
tutorial
For commercial chargers, we not only provide standardized services
for charging piles, but also provide payment software docking
services for operating companies.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in
China and CE certification in EU. For some other countries, the
relevant certifications are in progress.
Q: How do you guarantee the quality of your products?
The charging post products we sell have passed GB certification in
China and CE certification in EU. For some other countries, the
relevant certifications are in progress.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger
KW, please contact us to get the correct quote.
|
|
